Brass 90° External Thread Gas Elbow Fitting

The Brass 90-Degree Male Thread Gas Elbow Connector is a space-saving, secure fitting designed to redirect gas flow at a right angle while enabling tool-free connections, merging durable brass construction, ergonomic operation, and leak-proof performance for residential and commercial gaseous fuel setups.

This elbow’s core strengths lie in its angled design and user-friendly functionality: the 90-degree bend allows gas connections in tight, confined spaces (e.g., behind appliances or around cylinder setups) where straight fittings cannot fit. Solid brass ensures exceptional compatibility with propane/butane, resistance to corrosion (even in outdoor or moist environments), and long-term structural integrity. The male thread and knurled grip enable quick, hand-tightened installation (no tools needed), while the tight-sealing design eliminates gas leak risks—a critical safety priority. It requires minimal maintenance (only visual inspections), supporting cost-effectiveness over its lifespan.

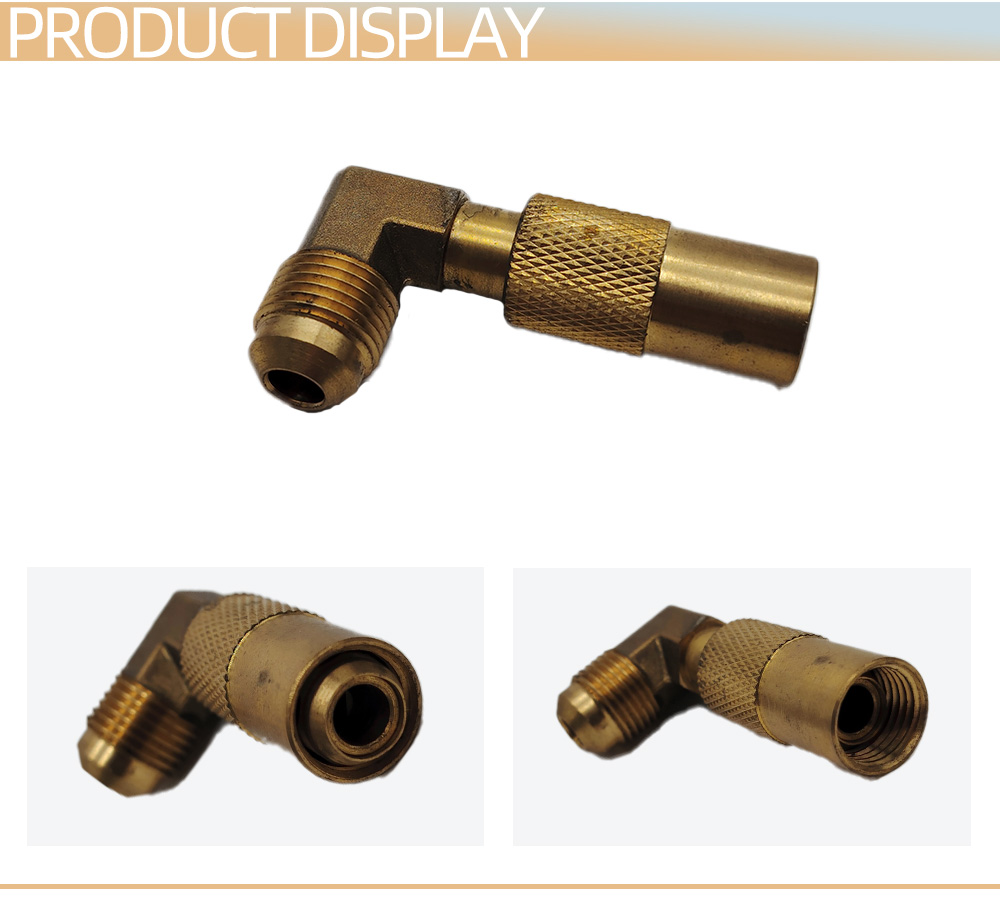

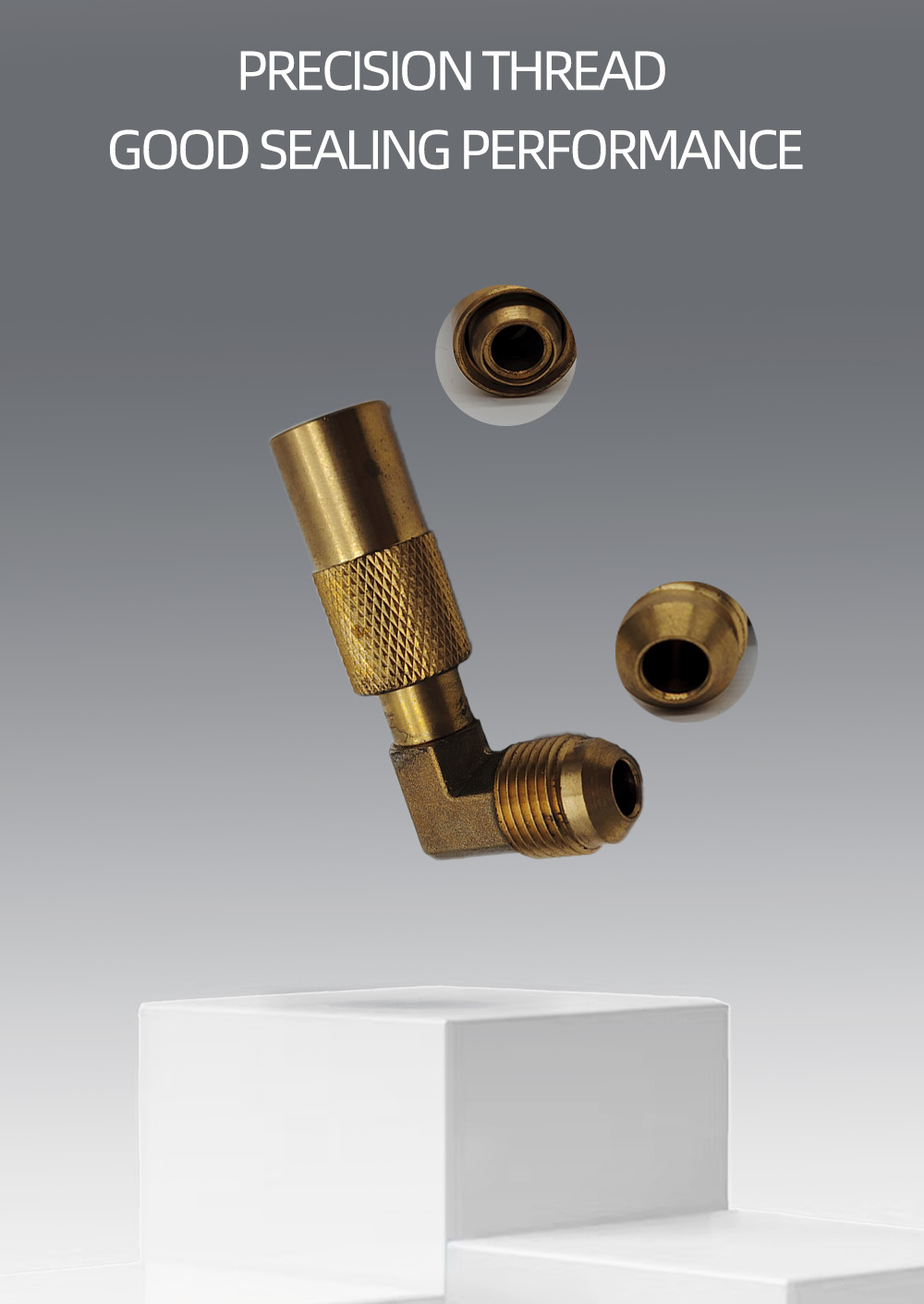

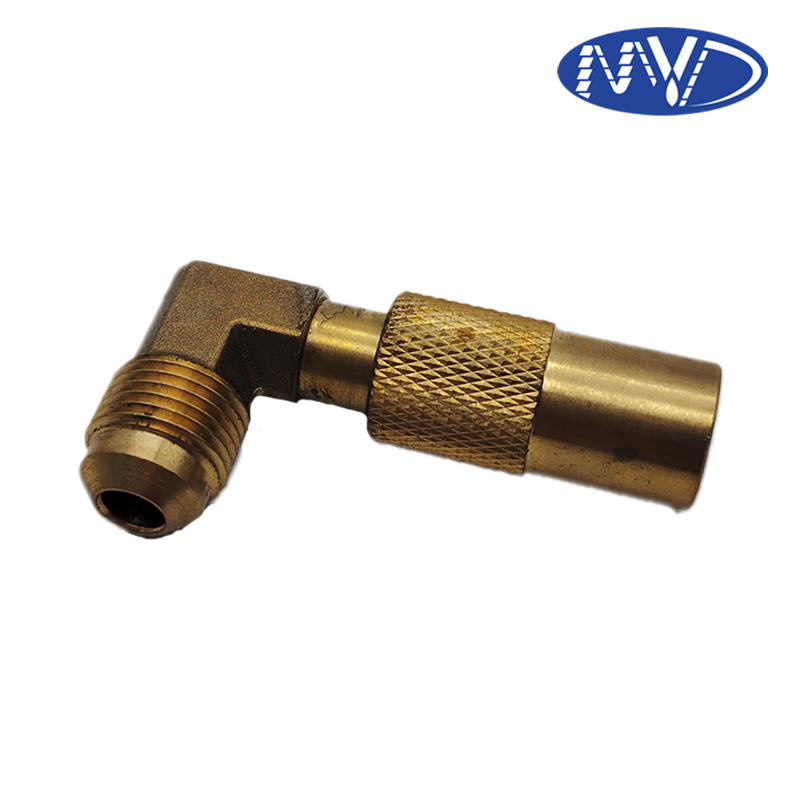

Structurally, the connector consists of a solid brass 90-degree body with three key parts (visible in the image): a male threaded end (for secure base connections), a hexagonal section at the bend (for wrench-assisted tightening), and a knurled grip section (for non-slip hand operation). The male threads create a stable link to gas hoses or valves, while the knurled grip provides leverage for easy, tool-free installation. The hexagonal section allows for extra torque if needed, ensuring a leak-proof seal. The internal bore is sized to maintain consistent gas flow without pressure loss, and the smooth brass finish resists wear and simplifies cleaning.

This 90-degree male thread gas elbow is widely used in residential indoor/outdoor setups (e.g., under-counter grills, wall-mounted heaters), commercial food service (e.g., compact kitchen appliances, food truck gas lines), and small-scale industrial gas systems: in homes, it redirects gas flow behind built-in patio grills; in small businesses, it fits tight spaces in food truck kitchens; in workshops, it links gas tools to wall-mounted supply lines. It is particularly suitable for environments where space efficiency and easy installation are priorities (e.g., small residential kitchens, mobile catering vehicles). Whether used with propane or butane systems, this elbow delivers consistent, safe performance. It provides a space-saving, user-friendly connection solution, balances durability and practicality, and meets the needs of homeowners, small business operators, and tradespeople seeking a robust brass gas fitting.
